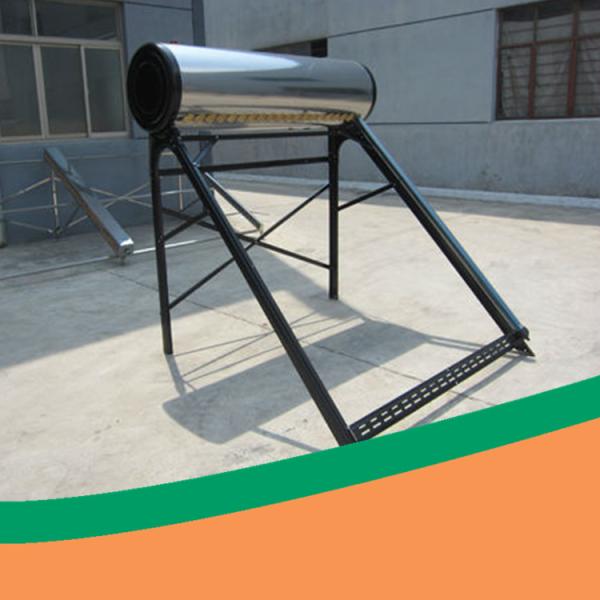

2-3 person family use indirect solar water heater high pressure
solar collector
The best Water supply time for stainless steel high pressure solar
water heater is to choose water in non-high temperature air
exposure. The Water supply time is two hours before sunrise or two
hours after sunset. Because the stainless steel high pressure solar
water heater's heat-collecting plate can quickly collect heat and
keep heat, if thestainless steel high pressure solar water heater
is applied in the air with extremely high temperature, the
temperature of the water is relatively low, and the solar
temperature is high, it is easy to cause the temperature difference
Cause a malfunction. If you fill the water immediately after using
it that night, it will easily affect the water temperature of the
next morning, the Water supply time should later.
(1) Specification:
Inner Tank:
Food grade SUS 304 stainless steel/316 stainless steel, 1.2mm,
diameter 360mm
Out Tank: Galvanized steel/201 stainless steel/304 stainless steel, 0.4mm,
diameter 460mm
Insulation: 50mm high-density polyurethane foamed
Inlet&Outlet: 1/2” or 3/4”, stainless steel
Vacuum Tube: QB-AL-N/AL-47mm/58mm-1800mm
Heat Pipe: Red copper, 1.0mm*14mm heat pipe head, 0.6mm*8mm heat pipe
Water Tank Bracket: Galvanized steel sheet, 1.5mm/201 stainless steel, 1.2mm/aluminium
alloy, stainless steel screws & nuts
Accessories: Electric heater, magnesium anode,TP valve, TK-7Y digital
controller and so on.
| Model | Compact Pressure Solar Water Heater (BS-P) |
| Water Tank | Inner Tank | Food grade SUS 304 stainless steel,【1.2mm】 |
| Out Tank | Galvanized steel/201 stainless steel/304 stainless steel, 0.4mm |
| Tank Diameter | 360/460mm |
| Insulation | 50mm high-density polyurethane
foamed |
| Tube Distance | 【75mm】 |
| Heat Pipe Vacuum Tube | High borosilicate 3.3 glass with three-target
(CU/SS-ALN(H)/SS-ALN(L)/ALN) coating, 58*1800mm, with heat pipe |
| Bracket | Stronger stainless steel 304, 27 degree, stainless steel 304 bolts & nuts |
| Certification | Passed CE/ISO9001/CCC/INMETRO |
| Model | Heat Pipe Vacuum Tube | Person NO. |
Diameter (mm) | Length (mm) | Quantity (pcs) |
| BS-P/PS-581800-10 | 58 | 1800 | 10 | 1-2 |
| BS-P/PS-581800-12 | 58 | 1800 | 12 | 2-3 |
| BS-P/PS-581800-15 | 58 | 1800 | 15 | 3 |
| BS-P/PS-581800-18 | 58 | 1800 | 18 | 3-4 |
| BS-P/PS-581800-20 | 58 | 1800 | 20 | 4 |
| BS-P/PS-581800-24 | 58 | 1800 | 24 | 4-5 |
| BS-P/PS-581800-30 | 58 | 1800 | 30 | 6 |
(2) Optional Accessories and their Function:
PT valve: temperature and pressure safety valves, with dual temperature and
pressure protection;
Electric backup: to heat water when rainy and cloudy days;
Magnesium bar: to soften water in hard water area;
TK-8A/TK-7/TK-5 digital controller: to control water level, feed
water automatically and control the operation of electric heater at
a certain tempeature as we except
Check valve: to prevent hot water from flowing backwards
(3) Application:
The main use is for family use, such as bathing, cloth washing and
so on.
Solar water heater with assistant tank model is widely used in
apartment, hotel and school.
Also it can be used for swimming pool, farm.
FAQ:
1- What is your Delivery Time?
LCL order/Sample order: within 7 days.
Full container order: 7-14days.
2- What is your Guarantee Time?
5 years.
Provide you with 1%-2% extra accessories and vacuum tubes, they are
free for you.
3- Can you accept OEM ?
YES.
4- What is your Payment Term?
We accept T/T or L/C at sight, Western Union.
5- What is your MOQ?
1 set.
6- What is your Packing?
LCL order/Sample order in wood cartoon.
Full container order in high quality standard export carton.
7- What is your FOB Port?
We accept FOB Shanghai, Ningbo etc.
8- What is your Monthly Production Capacity?
10000 sets.
9- What is your Shipping Term?
By Sea/Air/Rail.
