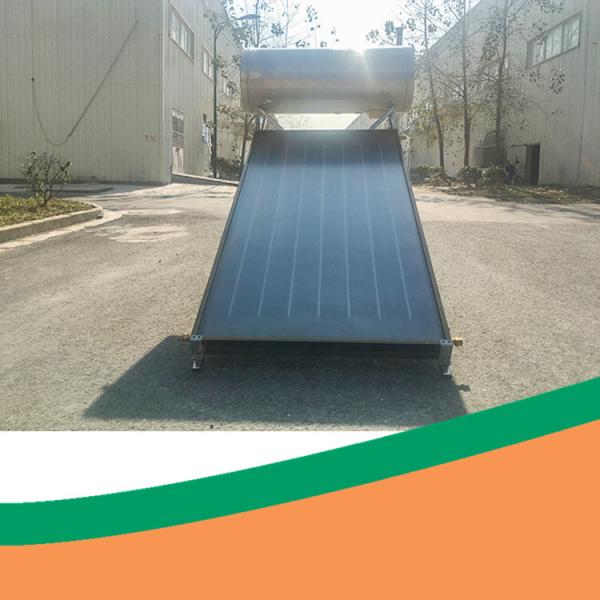

Solar keymark certificare high pressure flat plate solar water
heater
Flat plate solar water heater use the physical phenomenon of light
hot water and heavy cold water. The water in the vacuum tube is
exchanged with the water in the water tank to heat the cold water
and provide it to people. The main components of the flat plate
solar water heater system are: (1) collector (flat panel and
frame). Function is equivalent to electric heating pipe in electric
water heater. (2) Insulated water tank. Tank for storing hot water.
(3) Connect the pipes. The hot water is transferred from th eflat
panel to the heat preservation water tank, and the cold water is
transferred from the heat preservation water tank to the channel of
the heat collector, so that the entire flat plate solar water
heater system forms a closed loop. A well-designed and properly
connected circulation pipeline is crucial to the optimal working
state of the flat plate solar water heater. The hot water pipes
must be insulated.
(1)Technical Specification:
Water Tank
1. Inner Tank:
Food grade SUS 304 stainless steel/316 stainless steel, 1.2mm,
diameter 360mm
Out Tank: Galvanized steel/201 stainless steel/304 stainless steel, 0.4mm,
diameter 460mm
Insulation: 50mm high-density polyurethane foamed
Inlet&Outlet: 1/2” or 3/4”, stainless steel
Copper Coil: Single copper coil or double copper coil
2. Flat Plate Solar Collector
Dimension L*W*H (mm): 2000*1000*80
Cover Material: Low iron, tempered glass
Surface Treatment: Black chromed/blue film
Header: Copper TP2 22mm* 0.6mm (6 pcs)
Riser: Copper TP2 22mm* 0.6mm (6 pcs)
Insulation: Fiber glass
Casing: Anodized aluminum alloy frame
Bracket: Galvanized steel sheet, 1.5mm/201 stainless steel, 1.2mm/aluminium
alloy, stainless steel screws & nuts
3. Accessories
Electric heater, magnesium anode,TP valve, working station(include
digital controller, circulation pump, expansion vessel, safety
valve & fittings) and so on
| Model | Flat Plate Solar Collector | Collector Bracket | Pressurized Water Tank (No Coil) | Accessories | FOB shanghai /USD for 40HQ container |
| BS-FPC-P 100L | 1*BS-FPC-1 | 1 | FPC-P 100L | Do not include | US$224.00 |
| BS-FPC-P 150L | 1*BS-FPC-1.25 | 1 | FPC-P 150L | Do not include | US$284.00 |
| BS-FPC-P 200L | 2*BS-FPC-1 | 2 | FPC-P 200L | Do not include | US$410.00 |
| BS-FPC-P 250L | 2*BS-FPC-1.25 | 2 | FPC-P 250L | Do not include | US$479.00 |
| BS-FPC-P 300L | 3*BS-FPC-1 | 3 | FPC-P 300L | Do not include | US$588.00 |
FPC Flat Plate Solar Collector
| Item | BS-FPC-1.25 | BS-FPC-1 |
| Riser Pipe Type | GRID |
| Length×Width×Height (mm) | 2000×1250×80 | 2000×1000×80 |
| Header Pipe Material and Qty. | Copper TP2, Ø22 mm (2 pipes) |
| Riser Pipe Material and Qty. | Copper TP2, Ø8 mm (9 pipes) | Copper TP2, Ø8 mm (7 pipes) |
| Gross Area (m2) | 2.5 | 2.0 |
| Absorber Area(m2) | 2.27 | 1.82 |
| Net Weight (kgs) | 35 | 30 |
| Liquid Capacity (ltr) | 1.53 | 1.23 |
| Surface Treatment | Sputtering (Blue Titanium Absorber) (Bluetec) |
| Absorber Plate Material | Aluminum Board |
| Absorptivity | ≥95% ±2% |
| Emissivity | ≤5% ±2% |
| Frame Material | 6063 T5 Aluminum Profile,Thickness : 1.2mm |
| Back Plate | Galvanized Steel |
| Insulation Material & Thickness & Density | Fiber Glass 30mm,Density:36g/m3 |
| Transparent Cover | Super White Low Iron Embossed Tempered Glass, δ3.2mm, Light
Transmission ≥ 91.5% |
| Instant Thermal Efficiency (η) | 0.79 | 0.77 |
| Heat Transmission Medium | 70% Propylene Glycol+30% Pure Water |
| Test Pressure (Mpa) | 1.2 Mpa, and Keep 15 Minutes |
| Working Pressure (Mpa) | 0.7 |
| Advising Flow Rate (L/H- m2) | 70～80 |
| Heat Loss Coefficient a1* (w/ m2.℃) | 3.25 | 5.00 |
| Collector Stuffy Temperature (℃) | 190 | 180 |
FPC-P Series Pressurized Water Tank
| Model | Inner Tank | Insulation Layer | Outer Tank
| Coil Length | Tank Height |
Inner Dia. (mm) | Thickness (mm) | Thickness (mm) | Out Dia. (mm) | Thickness (mm) | Single Coil (mm) | Dual Coil (m) | (mm) |
| Lower(mm) | Upper (mm) |
| FPC-P 100L | 360 | 1.0 | 55 | 470 | 0.5 | 20 | 15 | 10 | 1060 |
| FPC-P 150L | 360 | 1.2 | 55 | 470 | 0.5 | 20 | 15 | 10 | 1450 |
| FPC-P 200L | 450 | 1.5 | 50 | 550 | 0.5 | 20 | 15 | 10 | 1340 |
| FPC-P 250L | 480 | 1.5 | 50 | 580 | 0.5 | 25 | 18 | 12 | 1450 |
| FPC-P 300L | 480 | 1.5 | 50 | 580 | 0.5 | 25 | 18 | 12 | 1700 |
| FPC-P 400L | 580 | 2.0 | 60 | 700 | 0.5 | 30 | 20 | 15 | 1560 |
| FPC-P 500L | 580 | 2.0 | 60 | 700 | 0.5 | 35 | 25 | 15 | 1890 |
| FPC-P 600L | 580 | 2.0 | 60 | 700 | 0.5 | 35 | 25 | 15 | 2176 |
| FPC-P 700L | 645 | 2.0 | 60 | 750 | 0.5 | 40 | 28 | 17 | 1920 |
| FPC-P 800L | 800 | 2.0 | 100 | 1000 | 0.5 | 45 | 30 | 20 | 1860 |
| FPC-P 1000L | 800 | 2.5 | 100 | 1000 | 0.5 | 50 | 35 | 25 | 2100 |
| FPC-P Series Pressurized Water Tank Specification |
| Inner Tank | Food grade SUS 304-2B stainless steel |
| Out Tank | Galvanized steel |
| Insulation | High-density polyurethane foamed |
| Inbuilt Heat Exchanger | Copper or stainless steel (Φ12/16/19/25mm) |
(2) Optional Accessories and their Function:
PT valve: temperature and pressure safety valves, with dual temperature and
pressure protection;
Electric backup: to heat water when rainy and cloudy days;
Magnesium bar: to soften water in hard water area;
TK-8A/TK-7/TK-5 digital controller: to control water level, feed
water automatically and control the operation of electric heater at
a certain tempeature as we except
Check valve: to prevent hot water from flowing backwards
(3) Application:
The main use is for family use, such as bathing, cloth washing and
so on.
Solar water heater with assistant tank model is widely used in
apartment, hotel and school.
Also it can be used for swimming pool, farm.
FAQ:
1- What is your Delivery Time?
LCL order/Sample order: within 7 days.
Full container order: 7-14days.
2- What is your Guarantee Time?
5 years.
Provide you with 1%-2% extra accessories and vacuum tubes, they are
free for you.
3- Can you accept OEM ?
YES.
4- What is your Payment Term?
We accept T/T or L/C at sight, Western Union.
5- What is your MOQ?
1 set.
6- What is your Packing?
LCL order/Sample order in wood cartoon.
Full container order in high quality standard export carton.
7- What is your FOB Port?
We accept FOB Shanghai, Ningbo etc.
8- What is your Monthly Production Capacity?
10000 sets.
9- What is your Shipping Term?
By Sea/Air/Rail.
