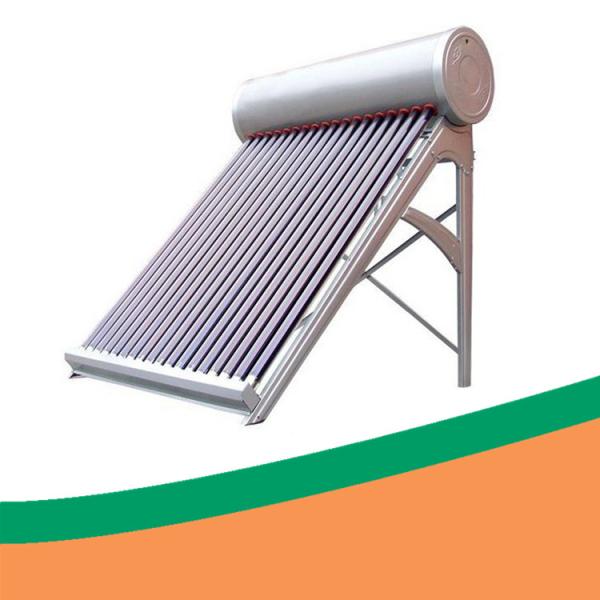

Inoxidable non-pressurized thermosiphon evacuated tube solar water
geyser
(1) Product Description
Evacuated tube solar water geyser makes the water is heated by
means of vacuum tubes which take advantage of solar radiation. Cold
water is heavy, and when heated increases the density reason why it
rises to the top of the storage tank which has a thermal layer of
usually 50mm to keep the water warm.
And our this evacuated tube solar water geyser has an auxiliary
tank which aims to keep the main tank filled with water. When
opening the hot water stopcocks, the pressure depends on the height
where the heater is installed, as it is attracted by gravity. Our
evacuated tube solar water geyser is recommended to install 2 to 3
meters high in relation to the shower.
(2) Technical Specification:
Solar Water Heater Inner Tank:
Food grade SUS 304 stainless steel/316 stainless steel, 0.4-0.6mm,
diameter 360mm/380mm
Solar Water Heater Out Tank: Galvanized steel/201 stainless steel/304 stainless steel, 0.4mm,
diameter 460mm/480mm
Insulation: 50mm high-density polyurethane foamed
Inlet&Outlet: 1/2” or 3/4”, stainless steel
Vacuum Tube: QB-AL-N/AL-47mm/58mm-1800mm
Water Tank Bracket: Galvanized steel sheet, 1.5mm/201 stainless steel, 1.2mm/aluminium
alloy, stainless steel screws & nuts
| Model | Evacuated Tube | Tank & Tube Capacity (L) | Person NO. |
Diameter (mm) | Length (mm) | Quantity (pcs) |
| BS-NP/NPS-581800-6 | 58 | 1800 | 6 | 60 | 1 |
| BS-NP/NPS-581800-8 | 58 | 1800 | 8 | 80 | 1-2 |
| BS-NP/NPS-581800-10 | 58 | 1800 | 10 | 100 | 1-2 |
| BS-NP/NPS-581800-12 | 58 | 1800 | 12 | 120 | 2-3 |
| BS-NP/NPS-581800-15 | 58 | 1800 | 15 | 150 | 3 |
| BS-NP/NPS-581800-18 | 58 | 1800 | 18 | 180 | 3-4 |
| BS-NP/NPS-581800-20 | 58 | 1800 | 20 | 200 | 4 |
| BS-NP/NPS-581800-24 | 58 | 1800 | 24 | 240 | 4-5 |
| BS-NP/NPS-581800-30 | 58 | 1800 | 30 | 300 | 6 |
| BS-NP/NPS-581800-36 | 58 | 1800 | 36 | 360 | 7 |
| BS-NP/NPS-581800-50 | 58 | 1800 | 50 | 500 | 9-10 |
(3) Optional Accessories and their Function:
Assistant tank: to add water automatically;
Electric heater: to heat water when rainy and cloudy days;
Magnesium anode: to soften water in hard water area;
TK-8A/TK-7/TK-5 digital controller: to read and control water
temperature and water level
(4) Our Advantage:
1. Solar water heater with assistant tank modelnew design side
assistant tank for hard water area;
2. Non-welding technology
(5) Application:
The main use is for family use, such as bathing, cloth washing and
so on.
Solar water heater with assistant tank model is widely used in
apartment, hotel and school.
Also it can be used for swimming pool, farm.
(6) FAQ
1- What is your Delivery Time?
LCL order/Sample order: within 7 days.
Full container order: 7-14days.
2- What is your Guarantee Time?
5 years.
Provide you with 1%-2% extra accessories and vacuum tubes, they are
free for you.
3- Can you accept OEM ?
YES.
4- What is your Payment Term?
We accept T/T or L/C at sight, Western Union.
5- What is your MOQ?
1 set.
6- What is your Packing?
LCL order/Sample order in wood cartoon.
Full container order in high quality standard export carton.
7- What is your FOB Port?
We accept FOB Shanghai, Ningbo etc.
8- What is your Monthly Production Capacity?
10000 sets.
9- What is your Shipping Term?
By Sea/Air/Rail.
